Why Is My Commercial Freezer Tripping the Power?

Stop Resetting the Breaker

When a commercial freezer tripping power repeatedly shuts down a kitchen, the immediate reaction is often to just reset the switch and hope for the best. We constantly see this quick fix lead to catastrophic equipment failure in Petaling Jaya restaurants.

Stop doing that after the second trip.

Our technicians find that cumulative damage builds with every single cycle. Each restart of a freezer compressor hits inrush current, which is typically three to seven times the running current for 50 to 200 milliseconds. We know this massive power surge places incredible stress on wiring and components that are already struggling.

The right move after two rapid trips is to leave the breaker off, move your stock to backup cold storage, and call a professional. Our priority is to help you protect the food and prevent a minor fault from turning into a major wiring fire.

The Five Most Common Causes

You will quickly notice that the root cause of a tripped breaker usually traces back to one of five specific hardware failures. We categorize these issues based on the exact component drawing the excess amperage.

1. Compressor Short Circuit

The most expensive fault occurs when the compressor windings short to ground. We use an insulation-resistance megger test to confirm this diagnosis. A reading under two megohms clearly indicates that the motor is drawing excessive current and forcing the breaker to trip. Our teams frequently replace major industrial units from brands like Copeland or Kulthorn when this happens.

Repairing this issue requires a full compressor replacement, which typically costs RM2,500 to RM6,000 depending on the freezer size. We always urge owners of commercial freezers over eight years old to use this exact moment to evaluate repair vs replacement. The cost of fixing an aging unit often outweighs the financial benefits of upgrading to a modern system.

2. Starter Relay Failure

Our maintenance crews see starter relay failures as the most common cause behind those frustrating intermittent trip patterns. The specific relay that energises the compressor start winding simply welds shut or fails entirely. We notice that the unit often works perfectly fine when cold but fails as soon as it becomes thermally stressed.

A faulty relay prevents the compressor from starting cleanly, which causes an immediate inrush current spike that trips the breaker. We can usually complete this 30 to 60 minute repair directly on site. A standard Positive Temperature Coefficient or potential starter relay replacement costs between RM280 and RM550.

3. Condenser Fan Motor Over-Draw

Our specialists frequently discover failing condenser fan motor bearings during routine inspections. The motor draws elevated current as it tries to spin against increased friction from heavy dust and grease buildup. We find that the combined load of the compressor and the struggling fan easily exceeds the breaker rating.

This specific fault is almost always paired with a hot ambient temperature around the condenser and marginal cooling performance for several days before the trip. We typically install high-efficiency Electronically Commutated Motors to resolve this issue permanently. A complete condenser fan motor replacement generally runs from RM400 to RM800.

4. Defrost Heater Element Fault

We often trace a walk in freezer electrical fault directly to a shorted automatic defrost heater element. An internal short causes the heater to draw massive amounts of current specifically during its active cycle. Our technicians use standard Paragon or Danfoss timer clocks to identify the exact trip intervals.

You can usually spot this issue because the breaker trip timing correlates perfectly with the four to six hour defrost cycle rather than peak load hours. We resolve this problem by swapping out the damaged heating coils. A standard defrost heater replacement costs between RM450 and RM900.

5. Moisture Intrusion in Electrical

Our daily service routes through Petaling Jaya expose us to severe moisture intrusion in bustling commercial kitchens. Heavy steam, aggressive washdown routines, or basic condensation easily reach vulnerable electrical components. We frequently repair intermittent shorts inside standard junction boxes, switch terminals, or sensor wiring.

Water ingress triggers the highly sensitive safety mechanisms inside modern distribution boards. We dry out the affected components and reseal the connections using IP65 wet-rated electrical enclosures. The total cost for this essential safety upgrade ranges from RM350 to RM900 depending on the extent of the water damage.

What a Technician Actually Diagnoses

We follow a strict, standardized sequence to eliminate guesswork and identify the exact electrical fault. The on-site process isolates the problem component quickly and safely. Our teams perform the following specific diagnostic steps on every call:

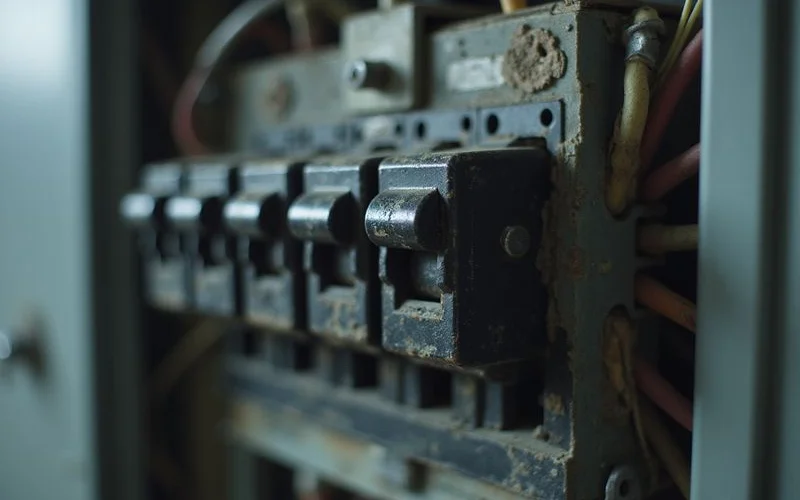

1. Visual inspection of the distribution board: The technician confirms the trip type to determine if it is an overcurrent, earth-fault, or short-circuit.
2. Insulation test (megger): A specialized tester verifies the integrity of the compressor and fan motor windings.
3. Component isolation: The technician disconnects the compressor, restarts the unit, and checks if the breaker holds before testing the fan.

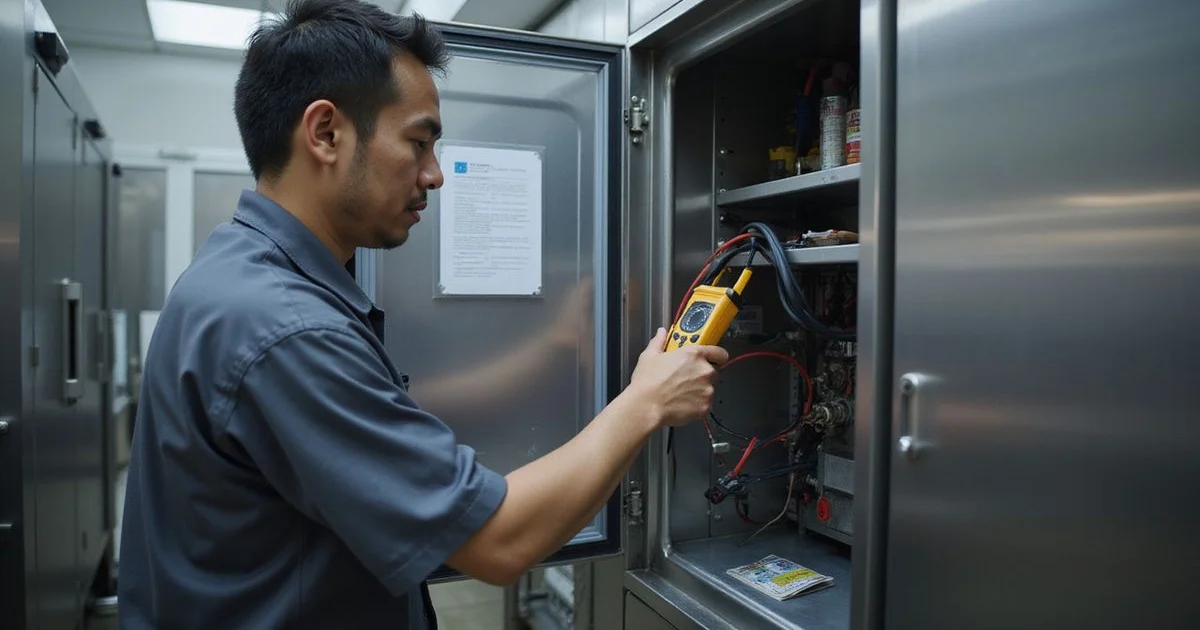

4. Clamp meter under load: A digital Fluke meter measures the actual current draw of each component against the factory nameplate rating.
5. Thermal imaging: Infrared cameras identify dangerous hot-spot components and degraded electrical connections.

We complete most of these thorough diagnostics within 30 to 60 minutes. The final repair cost and timeline will always vary based on these concrete findings.

Electrical Safety Warnings

We strongly advise against taking shortcuts when dealing with a freezer circuit breaker keeps tripping. Dangerous modifications put your property and your staff at severe risk.

1. Upsize the Breaker

Our safety inspectors consider upsizing the breaker to be the most dangerous fix imaginable. The existing component is precisely sized to protect the wiring downstream, which is typically a 20A or 30A circuit. We regularly see business owners try to swap in a 40A switch just to stop the nuisance tripping.

This terrible mistake allows the wiring to overheat and melt long before the oversized breaker ever reacts. We adhere strictly to Suruhanjaya Tenaga guidelines, which forbid these illegal modifications. Electrical wiring fires are the worst-case outcome of this specific shortcut.

2. Bypass the Breaker

We classify hard-wiring around the breaker or jumping the contacts as equally dangerous and illegal. This reckless action removes the only line of defence your electrical system has against massive power surges. Our technicians compare this bypass method to permanently disabling a smoke alarm simply because it keeps going off during a fire.

A direct, unmanaged fault current will instantly destroy the compressor motor. We refuse to service units that have been bypassed until the distribution board is restored to code. Your insurance policy will likely reject any claim involving a deliberately bypassed safety device.

3. Run with a Known Earth Fault

Our engineers warn that an earth-leakage protection trip indicates current is flowing through unintended paths. This specific fault usually stems from a degraded motor winding or severe moisture intrusion. We know that running the unit anyway risks delivering a lethal electrical shock to anyone touching the freezer chassis or metal shelving.

Current regulations mandate highly sensitive 30mA Residual Current Devices for commercial kitchen setups to prevent this exact scenario. We measure leakage currents accurately to pinpoint the failing component before anyone gets hurt. Ignoring a tripped RCD is never an acceptable option in a busy food service environment.

Why Repeated Resets Damage the Unit Further

We want you to understand exactly what happens inside the machine every time you flip that switch back on. Each forced compressor restart creates a brutal mechanical and thermal shock.

We constantly replace compressors that could have been saved if the owner had simply left the breaker alone. A unit that tripped three or four times during an initial fault displays noticeably worse insulation resistance than one that tripped only once. Our data confirms that multiple resets easily turn a basic RM300 repair into a RM3,000 complete replacement.

When to Call Immediately

We recommend placing a same-night emergency call rather than waiting until the morning under several specific conditions. Immediate action is critical to prevent a total loss of high-value inventory like premium seafood or imported meats. Our Petaling Jaya field team needs to inspect the system right away if you observe any of these critical warning signs:

• The main breaker has tripped more than twice within a single hour.
• You detect a distinct burning smell resembling melting plastic or rubber.
• Visible smoke or clear scorching appears around the distribution board.
• The freezer chassis feels strangely warm or vibrates abnormally.

We prioritise these severe electrical trips through the Chill Pro 24/7 commercial line. A quick WhatsApp message to +60 14-850 9211 with “freezer breaker trip” in the subject ensures the fastest possible routing.

After the Repair: Maintenance Matters

We know that the same worn components that cause a sudden commercial freezer tripping power incident always show warning signs long before they fail. Scheduled quarterly maintenance catches these precise issues two to three months before they become catastrophic outages.

Our technicians actively look for elevated current draws on aging fan motors and test for marginal insulation resistance on older compressors. Preventative inspections ensure that defrost heater elements are not losing efficiency or drawing unsafe loads.

We include comprehensive electrical safety testing as a standard feature in all our restaurant refrigeration maintenance contracts. Regular health checks keep your kitchen compliant with local safety standards and protect your bottom line.

We encourage you to schedule your next preventative maintenance visit today.
